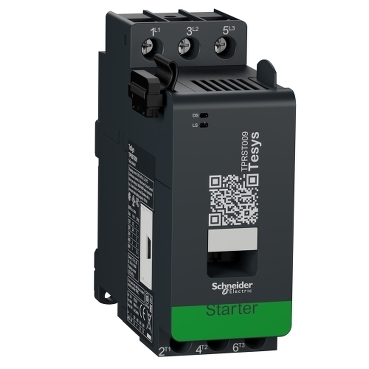

Specifications
| range | TeSys |
|---|---|
| product name | TeSys island |
| device short name | TPRST |
| product or component type | Motor starter |
| motor starter type | Direct on line |
| device presentation | Direct starter connected to an automation controller through a bus coupler Operational only when connected to a bus coupler |
| function available | Upstream voltage presence detection Electrical line and load protection Power and energy monitoring when connected with TPRVM voltage module |
| product compatibility | TPRBC bus coupler TPRVM voltage interface module |
| poles description | 3P (3 NO) |
| utilisation category | AC-1 AC-2 AC-3 AC-4 |
| motor power kW | 2.2 kW at 230 V 50 Hz (AC-3) 4 kW at 380…415 V 50 Hz (AC-3) 4 kW at 440 V 50 Hz (AC-3) 5.5 kW at 500 V 50 Hz (AC-3) 5.5 kW at 690 V 50 Hz (AC-3) |
| motor power HP (UL / CSA) | 0.33 hp at 120 V AC 60 Hz for 1 phase motors 1 hp at 240 V AC 60 Hz for 1 phase motors 2 hp at 208 V AC 60 Hz for 3 phases motors 2 hp at 240 V AC 60 Hz for 3 phases motors 5 hp at 480 V AC 60 Hz for 3 phases motors 7.5 hp at 600 V AC 60 Hz for 3 phases motors |
| [Ue] rated operational voltage | <= 690 V AC 47…63 Hz |
| [Ie] rated operational current | 9 A (at <50 °C) at <= 440 V AC-3 15 A (at <50 °C) at <= 440 V AC-1 |
| [Ith] conventional free air thermal current | 15 A (at 50 °C) |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 600 V conforming to UL 60947-4-1 600 V conforming to CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| overvoltage category | III |
| thermal protection adjustment range | 0.18…9 A |
| thermal overload class | Class 5…30 |
| reset | Remotely or automatically |
| Irms rated making capacity | 250 A at 440 V conforming to IEC 60947 |
| rated breaking capacity | 250 A at 440 V conforming to IEC 60947 |
| [Icw] rated short-time withstand current | 210 A 40 °C – 1 s 105 A 40 °C – 10 s 61 A 40 °C – 1 min 30 A 40 °C – 10 min |
| average impedance | 2.5 mOhm – Ith 15 A 50 Hz |
| power dissipation per pole | 0.2 W AC-3 – Ith 9 A 0.56 W AC-1 – Ith 15 A |
| [Uc] control circuit voltage | 24 V DC supplied by the bus coupler |
| current consumption | 160 mA contactor sealed 160 mA contactor closing |
| power dissipation in W | 3.5 W at Ie AC-3 |
